■We perform dimension measurement and rank classification using a high-pixel
camera.
It can be expected to improve the yield such as improving the printing
misalignment.Slit classification is also possible.
■Since the substrate surface is excellent in smoothness and there are few voids (holes on the substrate surface), it is also used in chip resistors for thin film applications.
■We can provide finishing with minimal burrs.
■We can handle the design, manufacturing, and repair of molds in-house.
 |
Main Applications of Alumina 96% Substrates by Phonon Meiwah
■General Thick Film Printed Circuit Boards
■Automotive Printed Circuit Boards
■Automotive Thin Film Resistor Printed Circuit Boards
■Sensor Printed Circuit Boards
■High-Voltage Resistor Substrates
■Power Module Printed Circuit Boards
■Hybrid IC Printed Circuit Boards
|
Standard Size(mm)
50ｘ60、60ｘ70、65ｘ74、
80ｘ84、110ｘ120
Standard Thickness(mm)
0.10、0.20、0.23、0.28、0.32、0.38
0.40、0.47、0.50、0.63、0.80、1.0
|
|
|
 Specifications
| Material |
Alumina
(Aluminum Oxide) |
| Product code number |
A-6 |
A-996 |
| Chemical analysis |
Al2O3 96% |
Al2O3 99.6% |
| Color |
White |
| Apparent specific gravity [Kg/m3] |
3.7x103 |
3.8 to 3.9x103 |
| Water absorption [%] |
＜0.01 |
| Safety service temperature [℃] |
1,400 |
1,200 |
| Flexural strength [MPa] |
＞400 |
600 |
| Compressive strength [MPa] |
＞1,070 |
N.A |
Thermal expansion
|
20～ 500℃ |
7.2x10-6 |
7 to 8x10-6 |
| 20～ 800℃ |
7.8x10-6 |
| 20～1000℃ |
8.1x10-6 |
N.A |
| Thermal conductivity [W/(m・K)] |
24 |
27 to 30 |
| Dielectric strength [kV/mm] |
10 |
| Volume resistivity [ohm-cm] |
25℃ |
＞1014 |
| 300℃ |
＞1011 |
| 500℃ |
＞108 |
| Dielectric constant (1MHz) |
9.3 |
10.2 |
| Dielectric loss (1MHz) |
0.0001 |
0.0002 |
|
General Quality Characteristics (Dimension Tolerance)
| Products |
Pressing |
Laser processing |
| Dimensions (max. inches) |
4.5x7.0 |
4.0x7.0 |
| Dimension Tolerance |
±0.60%
NLT±0.05mm |
±0.30%
NLT±0.05mm |
| Plate thickness（㎜） |
0.1 to 1.0 |
| Plate thickness tolerance |
±10% |
| Camber tolerance |
＞0.06/25.4mm
At plate thickness 0.28mm below
＞0.13/25.4mm |
| Through hole（㎜） |
＞Ø0.3 |
| Through hole tolerance |
±0.60%
NLT±0.05mm |
±0.05mm |
| Right angle （㎜） |
±0.3 |
±0.2 |
| Surface roughness Ra（μm） |
＜0.5 |
|
Standard diemnsion and shape
| TYPE |
Dimension |
Unit size |
Unit q'ty |
| mm |
inch |
| 0402 |
01005 |
60x49.5x0.1t
60x70x0.1t |
- |
- |
| 0603 |
0201 |
60x49.5x0.2t
64.2(60,65)x75(70,74)x0.2t |
- |
- |
| 1005 |
0402 |
60x49.5x0.28t
60x70x0.28t |
0.95x0.48 |
5,520
7,910 |
| 1608 |
0603 |
60x49.5x0.4t
60x70x0.4t |
1.50x0.80 |
2,166
3,080 |
| 2012 |
0805 |
60x49.5x0.47t |
1.95x1.20 |
1,102 |
| 3216 |
1206 |
60x49.5x0.5t |
3.00x1.50 |
558 |
| 3225 |
1210 |
60x49.5x0.5t |
3.00x2.50 |
324 |
| 5025 |
2010 |
60x49.5x0.5t |
5.00x2.50 |
198 |
| 6332 |
2512 |
60x49.5x0.5t |
6.30x3.10 |
126 |
| 1608-2凹 |
0603-2凹 |
60x49.5x0.5t |
1.60x1.60 |
896 |
| 1608-4凸 |
0603-4凸 |
60x49.5x0.5t |
3.20x1.50 |
429 |
| 1608-4凹 |
0603-4凹 |
60x49.5x0.5t |
3.20x1.60 |
448 |
| Alumina 96% substrate reflection ratio (Daylight reflection ratio) |
Unit : % |
| Wavelength |
Thickness |
| 0.28mm |
0.50mm |
0.97mm |
| All wavelength |
300～2,500nm |
75.8 |
83.9 |
90.3 |
| Near ultraviolet-visible rays area |
300～780nm |
77.5 |
84.9 |
91.3 |
| Near ultraviolet rays area |
780～2,500nm |
73.5 |
82.7 |
89.0 |
Measurement standard : JIS K 5602
The above-mentioned value is typical data, not guaranteed data.

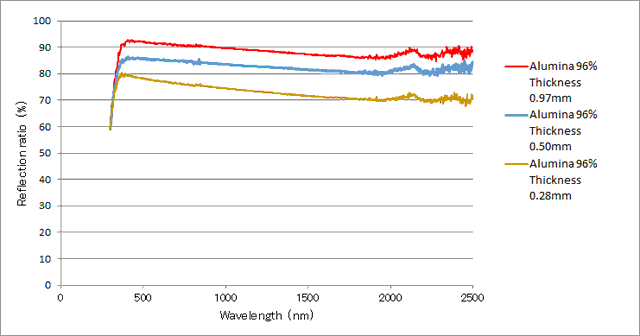

Reflectionspectrum
|
